Image Spot®

Brilliant Imaging.

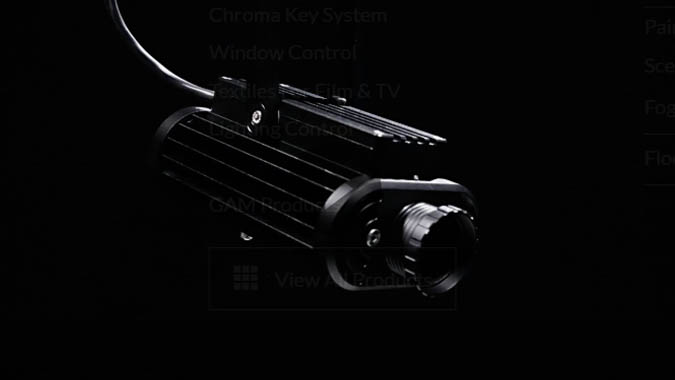

Using a mere 40W of power, the Image Spot LED projector provides an amazing amount of light output from a versatile and compact design. The fixture’s crystal clear optics ensure bright imaging in virtually any environment, and enable vivid gobo projection up to 40 feet (12m) away!

Image Spot’s IP65-rating allows it to be used both indoors and outdoors. An Image Spot HT (High Temperature) model is available for installations in environments with high ambient temperatures.

Please note that the Image Spot does not ship with a lens. Choose from the available very narrow, narrow, medium and wide Lens Optic Accessories when ordering to achieve the imaging or beam spread your project requires.

Accepts Image Spot Gobos And Permacolor Dichroic Glass Filters

Use the Image Spot to project any Rosco pattern – from the world’s largest library of standard gobo designs – or, project a custom gobo with a specific image, logo or message. The Image Spot is ready to accept steel, black and white & color glass gobos, and even thicker Effects Glass gobos such as Image Glass and ColorWaves. The Image Spot gobo cassette also accepts Rosco Permacolor dichroic glass filters for long term color effects, correction or enhancement.

Crystal Clear Optics

Image Spot's engineered optics produce a light beam with the highest uniformity and resolution, which enables the fixture to project even illumination or a crisp gobo image at distances up to 40 feet (12m).

Designed For Use Indoors Or Outdoors

The Image Spot’ IP65 rating offers the versatility to create spot-lighting or project gobos everywhere those effects may be required, both indoors and outdoors. An Image Spot HT model is also available for installations into areas with high ambient temperatures.

Manual or DMX Controls

The Image Spot uses a single channel to control the dimming of the LED. Choose from multiple control options including 0-10V, push-to-dim, DALI or DMX/RDM. The fixture includes a factory installed exterior-rated hybrid cable for wiring both power and data in a clean cable management form.

What’s In The Box:

  • Image Spot LED Projector
  • Manual
  • Image Spot Welcome Pack



Please note that the Image Spot does not ship with a lens. Make sure to choose an Image Spot Lens Optic Accessory when ordering to achieve the beam spread your project requires. Lens options include: 10°, 19°, 25° and 30°. Click on Photometrics tab above or download the Image Spot Photometrics Data Sheet for more information.


Input Voltage: 100-277VAC

Power Consumption: 40 Watts at maximum output

Color Temperature Options: 5500K or 3000K or UV

CRI:

  • 5500K Model: 80
  • 3000K Model: 96



Output:

  • 5500K Model: 800 lumens
  • 3000K Model: 600 lumens



Lumen Maintenance: 50,000 hours at 45°C (LM-79-08)

Power Connection: 6.5 ft (2m) hybrid data/mains cable (IP65) (Connectors not included.)

Data: DMX/RDM, 0-10V, DALI, Push DIM Options

  • In and thru, hybrid power & data cable (IP65)



DMX Addressing: RDM functionality available for addressing



Image Spot Dimensions

Dimensions:

  • Image Spot: 7.8in x 4.8in x 6.8in (198mm x 123mm x 172mm) (including yoke)
  • Image Spot HT:  9.3in x 4.8in x 6.8in (236mm x 123mm x 172mm) (including yoke)



Weight:

  • Image Spot: 5.5 lbs (2.5 kg)
  • Image Spot HT:  5.9 lbs (2.7 kg)




Operating Temperature:

  • Image Spot: -13° to 104° F (-25° to 40° C)
  • Image Spot HT:  -13° to 122° F (-25° to 50° C)



Humidity: 0 - 95% non-condensing

Housing: Anodized Aluminum Extrusion

Approvals:

  • ETL / UL Standards #62368-1 and #60950-22
  • cETL / CSA C22.2 #62368-1 and #6095-22
  • CE
  • IP65 Rated (outdoor use)



compliance



IS HT

Image Spot Gobos & Permacolor Filters:

For optimum image quality and performance, use Rosco Image Spot Gobos and Permacolor Filters, which feature custom bezels that enable a secure fit inside the Image Spot gobo cassette.



Standard Gobos

XXXXX-SPOT                     Image Spot Standard Gobo, XXXXX = The five digit standard gobo number

Custom Gobos

2507210ISPOT                   Image Spot Custom Steel Gobo

260CUSBWOSPO              Image Spot Custom B&W Glass Gobo

260CUS1COSPO               Image Spot Custom One-Color Glass Gobo

260CUS2COSPO               Image Spot Custom Two-Color Glass Gobo

260CUSMCOSPO              Image Spot Custom Multi-Color Glass Gobo

Permacolor Dichroic Filters

1203-XXXX-SPOT              Image Spot Permacolor Dichroic Glass Filter, XXXX = the four digit color number (includes bezel to fit inside gobo cassette)



Product Numbers

296 00004 0651 - Image Spot 5500K - IP65 - w/o Lens - Black
296 00004 0652 - Image Spot 5500K - IP65 - w/o Lens - White
296 00004 0653 - Image Spot 5500K - IP65 - w/o Lens - Silver

296 00004 1651 - Image Spot 5500K - IP65 w/DMX - w/o Lens - Black
296 00004 1652 - Image Spot 5500K - IP65 w/DMX - w/o Lens - White
296 00004 1653 - Image Spot 5500K - IP65 w/DMX - w/o Lens - Silver

296 00006 1654 - Image Spot HT 5500K - IP65 w/DMX - w/o Lens - Black
296 00006 1655 - Image Spot HT 5500K - IP65 w/DMX - w/o Lens - White
296 00006 1656 - Image Spot HT 5500K - IP65 w/DMX - w/o Lens - Silver

296 00003 0651 - Image Spot 3000K - IP65 - w/o Lens - Black
296 00003 0652 - Image Spot 3000K - IP65 - w/o Lens - White
296 00003 0653 - Image Spot 3000K - IP65 - w/o Lens - Silver

296 00003 1651 - Image Spot 3000K - IP65 w/DMX - w/o Lens - Black
296 00003 1652 - Image Spot 3000K - IP65 w/DMX - w/o Lens - White
296 00003 1653 - Image Spot 3000K - IP65 w/DMX - w/o Lens - Silver

296 00006 1651 - Image Spot HT 3000K - IP65 w/DMX - w/o Lens - Black
296 00006 1652 - Image Spot HT 3000K - IP65 w/DMX - w/o Lens - White
296 00006 1653 - Image Spot HT 3000K - IP65 w/DMX - w/o Lens - Silver
