Versatile, Durable, Adaptable

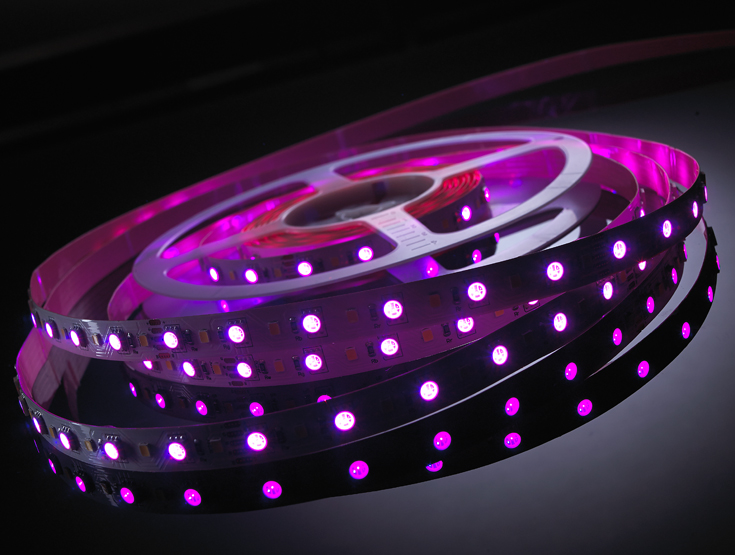

Includes RoscoLED Tape, Custom LitePad, Image Spot & X-Effects LED
Products on this page may not be available in your region.
Products on this page may not be available in your region.
Please complete this form
Designed for larger Custom LitePad installations, this system comes with power supply and controller all pre-wired and ready to integrate with an array of LitePads.
Power Input: 86 - 244 VAC
Output: 12VDC 25A
Dimming: 0-10VDC, DMX, DALI protocols
Constant voltage power supply for Custom LitePad installations. This power supply is UL recognized and addresses panels up to maximum 60W/5A.
Power Input: 115VAC or 230 VAC
Output: 12VDC 5A
Provides LED dimming via PWM (Pulse Width Modulation) or by 0-10 VDC converters. Two output Channels with maximum 2.5A output per channel; 52.5W total power output.
Input: 12-24VDC, 5.3A max.
Output: 52.5W max./2.5A max. per channel
Provides LED dimming via DALI interface. Two output Channels with maximum 2.5A output per channel; 50W total power output.
Input: 12VDC 5A max.
Output: 50W max./2.5A max. per channel
Products on this page may not be available in your region.
Please complete this form
Specifications:
Machined aluminum alloy lens holder
Precision optics
Available beam angles: 19°, 30°, 50°, 70°
Available colors: Black, Silver
For outdoor installations where the lens is mounted facing upwards, we recommend purchasing the X-Effects LED Lens Cover #297000000020. This accessory helps prevent pooling of water in the lens, which can lead to projection distortion and accelerate lens wear.
Product Numbers:
The X-Effects LED Lens Cover accessory helps prevent pooling of water in the lens for outdoor installations where an X-Effects LED lens is mounted facing upwards.
Download the X-Effects® LED Lens Cover Installation Instructions:
Download the X-Effects® LED Lens Cover Installation Instructions
Product Numbers:
Pair of protective caps to prevent water ingress and damage to the connectors of the X-Effects fixture and cable. The caps are threaded to easily screw on and off for protection when the cable is detached from the fixture.
Download the Installation Guide
Product Numbers:
This X-Effects LED Framing Shutters provide control of the fixture’s beam-size and shape. The four-leaf shutter accessory can be installed in a variety of ways along the magnetic ring around the static gobo position, allowing the fixture’s beam to be cut from the top, bottom and/or both sides.
Specifications:
Number of Leaves: Four (top/bottom/left/right)
Product Numbers:
Rosco’s 4-Pattern Gobo Wheel gobos can create unique lighting effects when inserted into an X-Effects LED Projector. Four gobo patterns are combined onto a single Dynamic-sized Black & White glass gobo to provide four different designs to rotate through, without having to remove or replace any gobos.
The 4-Pattern Gobo Wheel gobos are sized and configured specifically for the second Gobo Rotation Carrier further from the LED. This Dynamic gobo slot provides the sharpest focus for the patterns. Simply line up the desired pattern into the optical path and stop the gobo rotation to have the preferred gobo displayed.
Replacement Effects Glass Gobo for the X-Effects LED Projector.
Note – the fixture ships with two of these gobos. This single-gobo accessory is available to replace gobos that may break or become lost during use.
Product Numbers:
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
Products on this page may not be available in your region.
Please complete this form
The X-Effects LED Lens Cover accessory helps prevent pooling of water in the lens for outdoor installations where an X-Effects LED lens is mounted facing upwards.
Download the X-Effects® LED Lens Cover Installation Instructions:
Download the X-Effects® LED Lens Cover Installation Instructions
Product Numbers:
Specifications:
Machined aluminum alloy lens holder
Precision optics
Available beam angles: 19°, 30°, 50°, 70°
Available colors: Black, Silver
For outdoor installations where the lens is mounted facing upwards, we recommend purchasing the X-Effects LED Lens Cover #297000000020. This accessory helps prevent pooling of water in the lens, which can lead to projection distortion and accelerate lens wear.
Product Numbers:
This X-Effects LED Framing Shutters provide control of the fixture’s beam-size and shape. The four-leaf shutter accessory can be installed in a variety of ways along the magnetic ring around the static gobo position, allowing the fixture’s beam to be cut from the top, bottom and/or both sides.
Specifications:
Number of Leaves: Four (top/bottom/left/right)
Product Numbers:
Rosco’s 4-Pattern Gobo Wheel gobos can create unique lighting effects when inserted into an X-Effects LED Projector. Four gobo patterns are combined onto a single Dynamic-sized Black & White glass gobo to provide four different designs to rotate through, without having to remove or replace any gobos.
The 4-Pattern Gobo Wheel gobos are sized and configured specifically for the second Gobo Rotation Carrier further from the LED. This Dynamic gobo slot provides the sharpest focus for the patterns. Simply line up the desired pattern into the optical path and stop the gobo rotation to have the preferred gobo displayed.
Replacement Effects Glass Gobo for the X-Effects LED Projector.
Note – the fixture ships with two of these gobos. This single-gobo accessory is available to replace gobos that may break or become lost during use.
Product Numbers:
Rosco’s textured-dichroic ColorWaves gobos can create unique, color-blended lighting effects when inserted into an X-Effects LED Projector. These gobos are available in two sizes to fit into the Static Color/Gobo Slot or the larger (96mm) gobos to fit into the fixture’s two rotating Dynamic Effects Glass positions.
Product Number:
XXXXXX = five digit gobo number
Visit the ColorWaves page to see all of the available options: www.rosco.com/colorwaves
Rosco’s clear, textured Image Glass gobos can create unique lighting effects when inserted into an X-Effects LED Projector. These gobos are available in two sizes to fit into the Static Color/Gobo Slot or the larger (96mm) gobos to fit into the fixture’s two rotating Dynamic Effects Glass positions.
Product Number:
XXXXXX = five digit gobo number
Visit the Image Glass page to see all of the available options: www.rosco.com/imageglass
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
Products on this page may not be available in your region.
Please complete this form
A 75W LED AC/DC driver featuring constant current mode and high voltage output. Operating from 100~305VAC and contained in an IP67/65 metal housing provides the flexibility needed for both indoor and outdoor applications. The driver offers 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance).
Specifications:
|
Power input: |
75W, 100-305 VAC |
|
Output: |
1400mA, 27-54VDC |
|
Power factor: |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC (full load) |
|
Efficiency: |
90% |
|
Dimensions: |
7 in x 2.5 in x 1.4 in (180mm x 63mm x 35.5 mm) |
|
Weight: |
1.5lbs (.68kg) |
|
Power & data connections: |
Unterminated leads 12in. (300cm) |
|
IP rating: |
IP65 |
|
Dimming range: |
8~100% |
|
Dimming control: |
0-10V/PWM/Resistance built-in potentiometer |
A 75W LED AC/DC driver featuring constant current mode and high voltage output. Operating from 100~305VAC and contained in an IP67/65 metal housing provides the flexibility needed for both indoor and outdoor applications. The driver offers DALI control technology.
Specifications:
|
Power input: |
75W, 100-305 VAC |
|
Output: |
1400mA, 27-54VDC |
|
Power factor: |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC (full load) |
|
Efficiency: |
90% |
|
Dimensions: |
7 in x 2.5 in x 1.4 in (180mm x 63mm x 35.5 mm) |
|
Weight: |
1.5lbs (.68kg) |
|
Power & data connections: |
Unterminated leads 12in. (300cm) |
|
IP rating: |
IP67 |
|
Dimming range: |
8~100% |
|
Dimming control: |
DALI control technology |
A 75W LED AC/DC driver featuring constant current mode and high voltage output. Operating from 100~305VAC input and contained in an IP65 metal housing provides the flexibility needed for both indoor and outdoor applications. The driver offers dimming adjustment through a built-in potentiometer on the back of the driver.
Specifications:
|
Power input: |
75W, 100-305 VAC |
|
Output: |
1400mA, 27-54VDC |
|
Power factor: |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC (full load) |
|
Efficiency: |
90% |
|
Dimensions: |
7 in x 2.5 in x 1.4 in (180mm x 63mm x 35.5 mm) |
|
Weight: |
1.5lbs (.68kg) |
|
Power & data connections: |
Unterminated leads 12in. (300cm) |
|
IP rating: |
IP65 |
|
Dimming range: |
8~100% |
|
Dimming control: |
Onboard potentiometer |
A 75W LED AC/DC driver featuring constant current mode and high voltage output. Operating from 90~305VAC and contained in an IP67 housing provides the flexibility needed for both indoor and outdoor applications. The driver offers DMX control technology with RDM compatibility for addressing.
Specifications:
|
Power input: |
90-305 VAC |
|
AC Current Input: |
0.8A max @ 120Vac & Full Load; |
|
Output: |
1400mA, 32-71VDC |
|
Power factor: |
PF _0.98/120VAC, PF_0.97/220VAC, PF_0.92/277VAC (full load) |
|
Efficiency: |
87% |
|
Dimensions: |
5.16 in x 2.66 in x 1.32 in (131 x 67.5 x 33.5mm)(body) |
|
Weight: |
1.4lbs (.65kg) |
|
Power/data connections: |
Unterminated leads 12 in. (30cm), |
|
Approvals: |
Compliant with Safety Extra Low Voltage (SELV) standard. |
|
Lifetime: |
100,000 Hour at <75°C |
|
IP rating: |
IP67 |
|
Dimming control: |
DMX (RDM compatible) |
|
Channels: |
1 |
|
Dimming range: |
10%~100% |
The different Image Spot Lens Optics provide a range of long to short projection capabilities with varying image diameters. Each Image Spot Lens Optic is designed to receive the optional Image Spot Lens Cover that prohibits water & debris from entering the front of the optic. This easy-to-access filter chamber is also useful for installing one of the diffusion filters found in the optional OPTI-FLECS Filter Pack.
Specifications:
Available colors: Black, Silver
Available beam angles: 10°, 19°, 25°, 30°
The Very Narrow - 10° Lens enables the longest projection capability.
Image Diameter = 3.8’ (1.15m) @ 20’ (6m) distance.
The Narrow - 19° Lens enables long projection capability with broader image.
Image Diameter = 6.6’ (2m) @ 20’ (6m) distance.
The Medium - 25° Lens supports mid-range projections.
Image Diameter = 7.9’ (2.4m) @ 20’ (6m) distance.
The Wide - 30° Lens produces the widest beam spread, making it the best for short throws.
Image Diameter = 8.2’ (2.5m) @ 20’ (6m) distance.
Product Numbers:
3’ (1m) safety cable with convenient threaded connector designed to wrap around the fixture’s mounting point to provide security for any Image Spot installation.
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
Products on this page may not be available in your region.
Products on this page may not be available in your region.
Please complete this form
The different Image Spot Mini Lens Optics provide a range of long to short projection capabilities with varying image diameters.
Specifications:
Available colors: Black, Silver
Available beam angles: 11°, 17°, 25°
11° Lens enables the longest projection capability.
Image Diameter = 2.6’ (.8m) @ 16’ (4.8m) distance
17° Lens supports mid-range projections.
Image Diameter = 3.3’ (1m) @ 16’ (4.8m) distance
25° Lens produces the widest beam spread, making it the best for short throws.
Image Diameter = 3.5’ (1.1m) @ 16’ (4.8m) distance
Product Numbers:
A class 2 power supply that provides constant current for Image Spot Mini installations controlled via 0-10VDC or PWM. Features short circuit, over-temperature, overload and non-load protection.
Specifications:
Power Input: 100-277Vac (277 for North America only)
Output: 10-54Vdc, 200-1200mA
Dimming: 0-10V
Dimming Range: 0~100%, .01% dimming depth
PWM Dimming Frequency: ≤3600 Hz
Power Factor: >.95 (115Vac), .90 (230Vac), .85 (277 Vac) – Full Load
Efficiency: >88%
IP Rating: Dry Location Only
Compliance: SELV, cRUus, FCC, CE, RoHS, Class 2
Product Number:
A class 2 power supply inside a plastic housing that provides constant voltage for Image Spot Mini installations controlled via DMX 512. Features short circuit, over-temperature, overload and non-load protection.
Specifications:
Power Input: 36W, 100~277 VAC
Output: 10~54Vdc, 200~1200mA
Dimming Interface: DMX512/RDM, One Channel
Dimming Range: 0~100% (LED start at 0.1% possible)
Power Factor: >0.99
Efficiency: >88%
IP Rating: IP44
Compliant with Safety Extra Low Voltage (SELV) standard.
Product Number:
A class 2 power supply that provides constant current for Image Spot Mini installations controlled via Dali. Features short circuit, over-temperature, overload and non-load protection.
Specifications:
Power Input: 100-277Vac
Output: 10-54Vdc, 200-1200mA
Dimming: DALI
Dimming Range: 0~100%, .01% dimming depth
PWM Dimming Frequency: ≤3600 Hz
Power Factor: >.97 (115Vac), .90 (230Vac), .88 (277 Vac) – Full Load
Efficiency: 82%
IP Rating: Dry Location Only
Compliance: SELV, cRUus, FCC, CE, RoHS, Class 2
Product Number:
Provides an IP65 housing for the Image Spot Mini Drivers, which are rated for dry-location only.
Specifications:
9.33in x 3.58in (237mm x 91mm)
Product Number:
RJ45 to 5-Pin XLR Adaptor
5-Pin XLR to RJ45 Adaptor
This Image Spot Mini Iris provides control of the fixture’s beam-size. The 12-leaf iris replaces the fixture’s gobo cassette slot to create a round aperture that is even-edged even at its smallest diameter.
Specifications:
Number of Leaves: 12
Aperture Opening: 0.08” – 0.67” (2mm – 17mm)
Note: Using the Image Spot Mini Iris accessory will negate the fixture’s IP65 rating and should only be used for indoor installations.
Product Numbers:
This Image Spot Mini Framing Shutters provide control of the fixture’s beam-size and shape. The four-leaf shutter accessory replaces the fixture’s gobo cassette slot so that the fixture’s beam can be cut from the top, bottom and both sides.
Specifications:
Number of Leaves: Four (top/bottom/left/right)
Note: Using the Image Spot Mini Framing Shutters accessory will negate the fixture’s IP65 rating and should only be used for indoor installations.
Product Numbers:
The Image Spot Mini Cable Covers enable designers to blend the fixture’s power/data cable into the surroundings of their project. Available in black or white.
Specifications:
Length: 6’ (2M)
Substrate: PVC Vinyl
Product Numbers:
Products on this page may not be available in your region.
Products on this page may not be available in your region.
Please complete this form
The different Image Spot Lens Optics provide a range of long to short projection capabilities with varying image diameters. Each Image Spot Lens Optic is designed to receive the optional Image Spot Lens Cover that prohibits water & debris from entering the front of the optic. This easy-to-access filter chamber is also useful for installing one of the diffusion filters found in the optional OPTI-FLECS Filter Pack.
Specifications:
Available colors: Black, Silver
Available beam angles: 10°, 19°, 25°, 30°
The Very Narrow - 10° Lens enables the longest projection capability.
Image Diameter = 3.8’ (1.15m) @ 20’ (6m) distance.
The Narrow - 19° Lens enables long projection capability with broader image.
Image Diameter = 6.6’ (2m) @ 20’ (6m) distance.
The Medium - 25° Lens supports mid-range projections.
Image Diameter = 7.9’ (2.4m) @ 20’ (6m) distance.
The Wide - 30° Lens produces the widest beam spread, making it the best for short throws.
Image Diameter = 8.2’ (2.5m) @ 20’ (6m) distance.
Product Numbers:
Contains three, 43mm OPTI-FLECS diffusion filters designed for the Image Spot to create varying levels of beam control for spot lighting applications. The kit also includes a retaining ring for quick & easy installation of the filter inside the Image Spot Lens Optic.
The OPTI-FLECS Filter Pack includes:
• Retaining Ring
• Soft Diffusion (R132) – 43mm dia.
• Smoothing Frost (R9101) – 43mm dia.
• Double Powder Frost (R3000) – 43mm dia.
3’ (1m) safety cable with convenient threaded connector designed to wrap around the fixture’s mounting point to provide security for any Image Spot installation.
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
Products on this page may not be available in your region.
Please complete this form
The different Image Spot Lens Optics provide a range of long to short projection capabilities with varying image diameters. Each Image Spot Lens Optic is designed to receive the optional Image Spot Lens Cover that prohibits water & debris from entering the front of the optic. This easy-to-access filter chamber is also useful for installing one of the diffusion filters found in the optional OPTI-FLECS Filter Pack.
Specifications:
Available colors: Black, Silver
Available beam angles: 10°, 19°, 25°, 30°
The Very Narrow - 10° Lens enables the longest projection capability.
Image Diameter = 3.8’ (1.15m) @ 20’ (6m) distance.
The Narrow - 19° Lens enables long projection capability with broader image.
Image Diameter = 6.6’ (2m) @ 20’ (6m) distance.
The Medium - 25° Lens supports mid-range projections.
Image Diameter = 7.9’ (2.4m) @ 20’ (6m) distance.
The Wide - 30° Lens produces the widest beam spread, making it the best for short throws.
Image Diameter = 8.2’ (2.5m) @ 20’ (6m) distance.
Product Numbers:
3’ (1m) safety cable with convenient threaded connector designed to wrap around the fixture’s mounting point to provide security for any Image Spot installation.
RJ45 to 5-Pin XLR Adaptor
5-Pin XLR to RJ45 Adaptor
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
Your request is important to us.
We will respond as soon as possible during regular business hours.
Need help right away? Check out our frequently asked questions page here: FAQs
