Facades, Signage, Displays & More

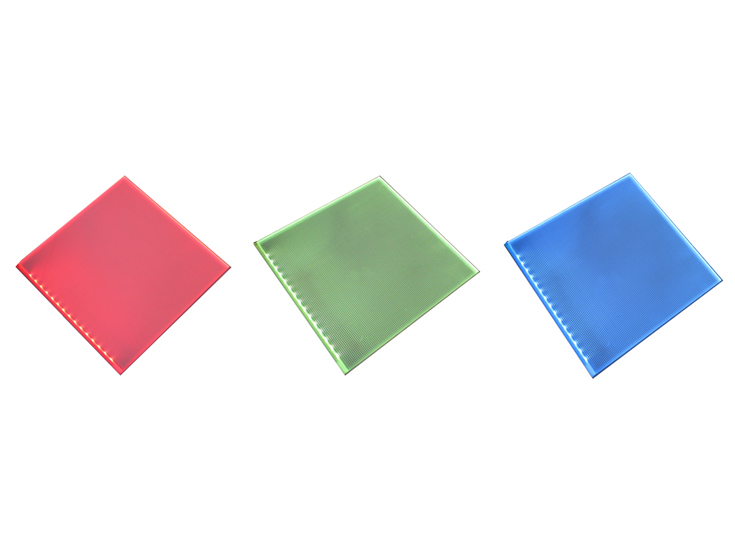

Includes RoscoLED Tape, Custom LitePad, Cube Family, Image Spot & X-Effects LED
Products on this page may not be available in your region.
Products on this page may not be available in your region.
Please complete this form
The X-Effects LED Lens Cover accessory helps prevent pooling of water in the lens for outdoor installations where an X-Effects LED lens is mounted facing upwards.
Download the X-Effects® LED Lens Cover Installation Instructions:
Download the X-Effects® LED Lens Cover Installation Instructions
Product Numbers:
Specifications:
Machined aluminum alloy lens holder
Precision optics
Available beam angles: 19°, 30°, 50°, 70°
Available colors: Black, Silver
For outdoor installations where the lens is mounted facing upwards, we recommend purchasing the X-Effects LED Lens Cover #297000000020. This accessory helps prevent pooling of water in the lens, which can lead to projection distortion and accelerate lens wear.
Product Numbers:
This X-Effects LED Framing Shutters provide control of the fixture’s beam-size and shape. The four-leaf shutter accessory can be installed in a variety of ways along the magnetic ring around the static gobo position, allowing the fixture’s beam to be cut from the top, bottom and/or both sides.
Specifications:
Number of Leaves: Four (top/bottom/left/right)
Product Numbers:
Rosco’s 4-Pattern Gobo Wheel gobos can create unique lighting effects when inserted into an X-Effects LED Projector. Four gobo patterns are combined onto a single Dynamic-sized Black & White glass gobo to provide four different designs to rotate through, without having to remove or replace any gobos.
The 4-Pattern Gobo Wheel gobos are sized and configured specifically for the second Gobo Rotation Carrier further from the LED. This Dynamic gobo slot provides the sharpest focus for the patterns. Simply line up the desired pattern into the optical path and stop the gobo rotation to have the preferred gobo displayed.
Replacement Effects Glass Gobo for the X-Effects LED Projector.
Note – the fixture ships with two of these gobos. This single-gobo accessory is available to replace gobos that may break or become lost during use.
Product Numbers:
Rosco’s textured-dichroic ColorWaves gobos can create unique, color-blended lighting effects when inserted into an X-Effects LED Projector. These gobos are available in two sizes to fit into the Static Color/Gobo Slot or the larger (96mm) gobos to fit into the fixture’s two rotating Dynamic Effects Glass positions.
Product Number:
XXXXXX = five digit gobo number
Visit the ColorWaves page to see all of the available options: www.rosco.com/colorwaves
Rosco’s clear, textured Image Glass gobos can create unique lighting effects when inserted into an X-Effects LED Projector. These gobos are available in two sizes to fit into the Static Color/Gobo Slot or the larger (96mm) gobos to fit into the fixture’s two rotating Dynamic Effects Glass positions.
Product Number:
XXXXXX = five digit gobo number
Visit the Image Glass page to see all of the available options: www.rosco.com/imageglass
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
Products on this page may not be available in your region.
Please complete this form
A 75W LED AC/DC driver featuring constant current mode and high voltage output. Operating from 100~305VAC and contained in an IP67/65 metal housing provides the flexibility needed for both indoor and outdoor applications. The driver offers 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance).
Specifications:
|
Power input: |
75W, 100-305 VAC |
|
Output: |
1400mA, 27-54VDC |
|
Power factor: |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC (full load) |
|
Efficiency: |
90% |
|
Dimensions: |
7 in x 2.5 in x 1.4 in (180mm x 63mm x 35.5 mm) |
|
Weight: |
1.5lbs (.68kg) |
|
Power & data connections: |
Unterminated leads 12in. (300cm) |
|
IP rating: |
IP65 |
|
Dimming range: |
8~100% |
|
Dimming control: |
0-10V/PWM/Resistance built-in potentiometer |
A 75W LED AC/DC driver featuring constant current mode and high voltage output. Operating from 100~305VAC and contained in an IP67/65 metal housing provides the flexibility needed for both indoor and outdoor applications. The driver offers DALI control technology.
Specifications:
|
Power input: |
75W, 100-305 VAC |
|
Output: |
1400mA, 27-54VDC |
|
Power factor: |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC (full load) |
|
Efficiency: |
90% |
|
Dimensions: |
7 in x 2.5 in x 1.4 in (180mm x 63mm x 35.5 mm) |
|
Weight: |
1.5lbs (.68kg) |
|
Power & data connections: |
Unterminated leads 12in. (300cm) |
|
IP rating: |
IP67 |
|
Dimming range: |
8~100% |
|
Dimming control: |
DALI control technology |
A 75W LED AC/DC driver featuring constant current mode and high voltage output. Operating from 100~305VAC input and contained in an IP65 metal housing provides the flexibility needed for both indoor and outdoor applications. The driver offers dimming adjustment through a built-in potentiometer on the back of the driver.
Specifications:
|
Power input: |
75W, 100-305 VAC |
|
Output: |
1400mA, 27-54VDC |
|
Power factor: |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC (full load) |
|
Efficiency: |
90% |
|
Dimensions: |
7 in x 2.5 in x 1.4 in (180mm x 63mm x 35.5 mm) |
|
Weight: |
1.5lbs (.68kg) |
|
Power & data connections: |
Unterminated leads 12in. (300cm) |
|
IP rating: |
IP65 |
|
Dimming range: |
8~100% |
|
Dimming control: |
Onboard potentiometer |
A 75W LED AC/DC driver featuring constant current mode and high voltage output. Operating from 90~305VAC and contained in an IP67 housing provides the flexibility needed for both indoor and outdoor applications. The driver offers DMX control technology with RDM compatibility for addressing.
Specifications:
|
Power input: |
90-305 VAC |
|
AC Current Input: |
0.8A max @ 120Vac & Full Load; |
|
Output: |
1400mA, 32-71VDC |
|
Power factor: |
PF _0.98/120VAC, PF_0.97/220VAC, PF_0.92/277VAC (full load) |
|
Efficiency: |
87% |
|
Dimensions: |
5.16 in x 2.66 in x 1.32 in (131 x 67.5 x 33.5mm)(body) |
|
Weight: |
1.4lbs (.65kg) |
|
Power/data connections: |
Unterminated leads 12 in. (30cm), |
|
Approvals: |
Compliant with Safety Extra Low Voltage (SELV) standard. |
|
Lifetime: |
100,000 Hour at <75°C |
|
IP rating: |
IP67 |
|
Dimming control: |
DMX (RDM compatible) |
|
Channels: |
1 |
|
Dimming range: |
10%~100% |
The different Image Spot Lens Optics provide a range of long to short projection capabilities with varying image diameters. Each Image Spot Lens Optic is designed to receive the optional Image Spot Lens Cover that prohibits water & debris from entering the front of the optic. This easy-to-access filter chamber is also useful for installing one of the diffusion filters found in the optional OPTI-FLECS Filter Pack.
Specifications:
Available colors: Black, Silver
Available beam angles: 10°, 19°, 25°, 30°
The Very Narrow - 10° Lens enables the longest projection capability.
Image Diameter = 3.8’ (2m) @ 20’ (6m) distance.
The Narrow - 19° Lens enables long projection capability with broader image.
Image Diameter = 6.6’ (2m) @ 20’ (6m) distance.
The Medium - 25° Lens supports mid-range projections.
Image Diameter = 7.9’ (2.4m) @ 20’ (6m) distance.
The Wide - 30° Lens produces the widest beam spread, making it the best for short throws.
Image Diameter = 8.2’ (2.5m) @ 20’ (6m) distance.
Product Numbers:
3’ (1m) safety cable with convenient threaded connector designed to wrap around the fixture’s mounting point to provide security for any Image Spot installation.
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
Products on this page may not be available in your region.
Products on this page may not be available in your region.
Please complete this form
The myMIX Connect RJ45 dongle enables lighting professionals to control a Miro Cube® 2 from their mobile device using the myMIX® app.
The dongle is self-powered from the Miro Cube 2, so no external power supply is required.
Download the myMIX App For iOS®:
Download the myMIX App For iOS
Download the myMIX Connect User Manual:
Download the myMIX Connect User Manual
Rosco OPTI-SCULPT lenses provide precise angular beam control to accurately control the shape of the light with increased brightness over other diffusion filters. Our proprietary OPTI-SCULPT manufacturing process features engineered light distribution that has been laboratory tested for accuracy and repeatability.
This kit of symmetrical OPTI-SCULPT lenses is the same kit that is included with the Miro Cube 2 4C, 4CA, and WNC fixtures. Each kit contains three lenses: 20°, 30°, and a reversible 40°R60° OPTI-SCULPT lens.
Visit the OPTI-SCULPT product page to learn more about the properties of these unique beam-shaping lenses.
Additional OPTI-SCULPT Lens accessories are also available for the Miro Cube 2.
Note: OPTI-SCULPT is not intended for use with the Miro Cube 2 UV365 black light.
Rosco OPTI-SCULPT lenses provide precise angular beam control to accurately control the shape of the light with increased brightness over other diffusion filters. Our proprietary OPTI-SCULPT manufacturing process features engineered light distribution that has been laboratory tested for accuracy and repeatability. Visit the OPTI-SCULPT product page to learn more about the properties of these unique beam-shaping lenses.
An OPTI-SCULPT Lens Kit is included with the 4C, 4CA, and WNC Miro Cube 2 models. The kit contains three symmetrical lenses: 20°, 30°, and a reversible 40°R60° OPTI-SCULPT lens. All OPTI-SCULPT lenses are available as an accessory for the Miro Cube 2. Note: OPTI-SCULPT is not intended for use with the Miro Cube 2 UV365 black light.
Four-leaf set of barn doors that provides multiple beam shaping options.
Provides 360° beam control to control spill and reduce glare to the viewing audience.
Controls spill, narrows the beam angle, and reduces glare to the viewing audience.
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
RJ45 to 5-Pin XLR Adaptor
5-Pin XLR to RJ45 Adaptor
Products on this page may not be available in your region.
Please complete this form
The myMIX Connect RJ45 dongle enables lighting professionals to control a Miro Cube® 2 from their mobile device using the myMIX® app.
The dongle is self-powered from the Miro Cube 2, so no external power supply is required.
Download the myMIX App For iOS®:
Download the myMIX App For iOS
Download the myMIX Connect User Manual:
Download the myMIX Connect User Manual
Four-leaf set of barn doors that provides multiple beam shaping options.
Provides 360° beam control to control spill and reduce glare to the viewing audience.
Controls spill, narrows the beam angle, and reduces glare to the viewing audience.
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
RJ45 to 5-Pin XLR Adaptor
5-Pin XLR to RJ45 Adaptor
Products on this page may not be available in your region.
Please complete this form
The myMIX Connect RJ45 dongle enables lighting professionals to control a Miro Cube® 2 from their mobile device using the myMIX® app.
The dongle is self-powered from the Miro Cube 2, so no external power supply is required.
Download the myMIX App For iOS®:
Download the myMIX App For iOS
Download the myMIX Connect User Manual:
Download the myMIX Connect User Manual
Rosco OPTI-SCULPT lenses provide precise angular beam control to accurately control the shape of the light with increased brightness over other diffusion filters. Our proprietary OPTI-SCULPT manufacturing process features engineered light distribution that has been laboratory tested for accuracy and repeatability.
This kit of symmetrical OPTI-SCULPT lenses is the same kit that is included with the Miro Cube 2 4C, 4CA, and WNC fixtures. Each kit contains three lenses: 20°, 30°, and a reversible 40°R60° OPTI-SCULPT lens.
Visit the OPTI-SCULPT product page to learn more about the properties of these unique beam-shaping lenses.
Additional OPTI-SCULPT Lens accessories are also available for the Miro Cube 2.
Note: OPTI-SCULPT is not intended for use with the Miro Cube 2 UV365 black light.
Rosco OPTI-SCULPT lenses provide precise angular beam control to accurately control the shape of the light with increased brightness over other diffusion filters. Our proprietary OPTI-SCULPT manufacturing process features engineered light distribution that has been laboratory tested for accuracy and repeatability. Visit the OPTI-SCULPT product page to learn more about the properties of these unique beam-shaping lenses.
An OPTI-SCULPT Lens Kit is included with the 4C, 4CA, and WNC Miro Cube 2 models. The kit contains three symmetrical lenses: 20°, 30°, and a reversible 40°R60° OPTI-SCULPT lens. All OPTI-SCULPT lenses are available as an accessory for the Miro Cube 2. Note: OPTI-SCULPT is not intended for use with the Miro Cube 2 UV365 black light.
Four-leaf set of barn doors that provides multiple beam shaping options.
Provides 360° beam control to control spill and reduce glare to the viewing audience.
Controls spill, narrows the beam angle, and reduces glare to the viewing audience.
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
RJ45 to 5-Pin XLR Adaptor
5-Pin XLR to RJ45 Adaptor
Products on this page may not be available in your region.
Products on this page may not be available in your region.
Products on this page may not be available in your region.
Your request is important to us.
We will respond as soon as possible during regular business hours.
Need help right away? Check out our frequently asked questions page here: FAQs
