RoscoLED® Tape VariColor: RGBA Kit

Vibrant, Versatile Lighting Solutions

Designed for the most demanding dramatic lighting applications, each RoscoLED Tape VariColor: RGBA Kit comes with two, 5m reels of high-quality, high-output, color-mixing LED tape, and one DMX addressable RoscoLED Control Box to provide power, dimming and color control for both reels. Each reel comes pre-configured with a multi-pin connector for easy Plug-&-Play connectivity with the RoscoLED Control Box – no soldering required.

Bold Colors And Warm Hues

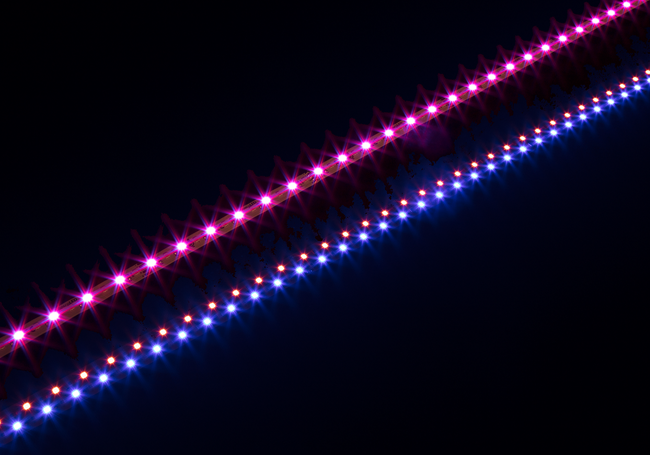

Featuring vibrant red, green, blue and amber emitters, RoscoLED Tape VariColor products provide full-range color-mixing options. The VariColor: RGBA Kits are engineered to produce virtually any color or tint, including rich, warm hues, that your project requires.

Plug-&-Play Connectivity

Each reel of RoscoLED Tape in the kit comes pre-configured with a multi-pin connector that is designed to quickly plug into our RoscoLED Control Boxes – no field-soldering required! RoscoLED Tape Kits are designed for quick and simple installation – featuring a balanced combination of 5m reels of LED tape and a matching control box for power and DMX dimming control.

Powerful And Efficient Output

Featuring dual-line SMD2835 emitters, each reel of RoscoLED Tape - VariColor: RGBA in the kit produces 1250 lumens/meter. Thanks to their efficient output, reels of RoscoLED Tape – VariColor: RGBA offer energy savings by providing 33 lumens/watt.

Durable, Long-Lasting Illumination

Each reel of RoscoLED Tape - VariColor: RGBA in the kit features a robust, 2 oz. copper heat sink. The integrated copper enables efficient thermal management of the LED emitters, allowing them to run cooler and extend their lifespan. The thicker copper base also minimizes potential for damage to the electronic circuits during handling and installation.

What’s In The Kit:

(2) 5m reels of RoscoLED Tape VariColor: RGBA

(1) RoscoLED VariColor Control Box/400W/24V

(2) 5m RoscoLED 5-pin VariColor Cables

(2) RoscoLED 5-Pin VariColor Female Connectors w/Pigtails, 20 cm



RoscoLED Tape VariColor: RGBA Specifications:

LED Type: Double Line SMD2835

Number of LEDs/meter: 48 Each – Red, Green, Blue, Amber

Heat Sink: 2 oz. Copper

Cut Points: Every 100mm (3.94”)

cut points

Lumens/Meter: 1250

Voltage: 24VDC

Power Consumption: 38.4W/m or 192W/5m reel

Operating Temp:  -4° to 140° F (-20° to 60° C)

Lumen Maintenance: > 47,000 hours L70 at 105C (IESNA LM-80-08 Standard)

IP Rating:  IP43

Warranty: 3-years

Approvals:

  • UL Listed
  • CE Certified



UL listed

CE certified



RoscoLED VariColor Control Box Specifications:

Input Voltage: 90VAC ~ 264VAC via Neutrik Powercon connector

Output Voltage:  24VDC via three, 5-pin connectors

Rated Power: 400W

DMX: 5-Pin XLR In – RJ45 In/Out

Operating Temp:  32° to 122° F (0° to +50° C)

IP Rating: IP20

Dimensions:  8.25" × 8.25" × 2.82" (210 mm × 210 mm × 72 mm)

Weight:  9.5 lb (4.3 kg)

Certifications:  ETL/cETL (UL8750, CSA 22.2 #250)

ETL certified

CE certified



Product Number:
293220100027   RoscoLED VariColor Kit: RGBA
