RoscoLED® Tape VariWhite Kits

Vibrant, Versatile Lighting Solutions

Designed for the most demanding dramatic lighting applications, each RoscoLED Tape VariWhite Kit comes with four, 5m reels of high-quality, high-output, high-CRI, bi-color LED tape, and one DMX addressable RoscoLED Control Box to provide power, dimming and color temperature control for all four reels. Each reel comes pre-configured with a multi-pin connector for easy Plug-&-Play connectivity with the RoscoLED Control Box – no soldering required.

Superior Color Rendering

Every reel of RoscoLED Tape - VariWhite generates a high output of white light with 93 CRI and 92 TLCI. This allows RoscoLED Tape products to be mixed with other non-LED light sources for seamless project integration – without additional filtration or modification of the LEDs.

Multiple Color Temperature Ranges Available

Whether you’re illuminating a cool environment or creating an enticingly warm atmosphere, RoscoLED Tape VariWhite Kits can produce the color temperature you need. Reels of RoscoLED Tape - VariWhite are available in two variants: 3000K-6000K, and our unique, VariWhite Ultra that features a color temperature range of 1800K-6000K.

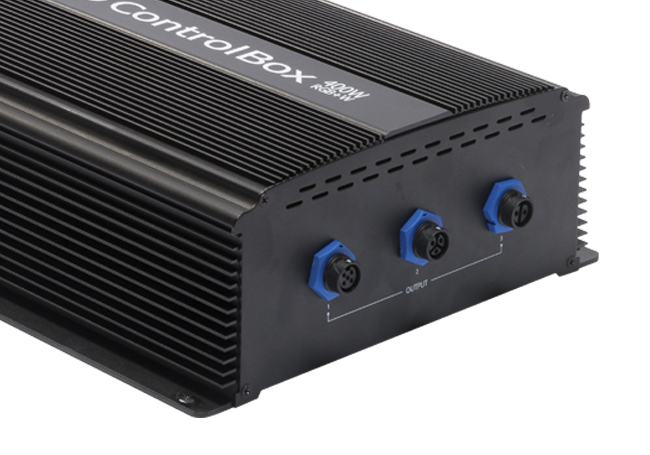

Plug-&-Play Connectivity

Each reel of RoscoLED Tape in the kit comes pre-configured with a multi-pin connector that is designed to quickly plug into our RoscoLED Control Boxes – no field-soldering required! RoscoLED Tape Kits are designed for quick and simple installation – featuring a balanced combination of 5m reels of LED tape and a matching control box for power and DMX dimming control.

Powerful And Efficient Output

Featuring SMD2835 white emitters, each reel of RoscoLED Tape - VariWhite in the kits produces up to 1,500 lumens/meter – while only consuming 95 watts of energy. That equates to an efficient 19 watts per meter of clean and bright white light.

Durable, Long-Lasting Illumination

Each reel of RoscoLED Tape VariWhite in the kit features a robust, 3 oz. copper heat sink. The integrated copper enables efficient thermal management of the LED emitters, allowing them to run cooler and extend their lifespan. The thicker copper base also minimizes potential for damage to the electronic circuits during handling and installation.

What’s In The Kit:

(4) 5m reels of RoscoLED Tape VariWhite

(1) RoscoLED VariWhite Control Box/400W/24V

(4) 5m RoscoLED 3-pin VariWhite Cables

(4) RoscoLED 3-Pin VariWhite Female Connectors w/Pigtails, 20 cm



RoscoLED Tape VariWhite Specifications:

LED Type: SMD2835

Number of LEDs/meter: 120 (60CW + 60WW)

Heat Sink: 3 oz. Copper

Cut Points:  Every 100mm (3.94”)

cut points

Lumens/Meter:

  • VariWhite: 1,500 lm/m
  • VariWhite Ultra: 1,400 lm/m



Color Temperature Options:

  • VariWhite: 3000K – 6000K
  • VariWhite Ultra: 1800K – 6000K



CRI : 93

TLCI: 92

Voltage: 24VDC

Power Consumption: 19W/m or 95W/5m

Operating Temp:  -4° to 140° F (-20° to 60° C)

Lumen Maintenance: > 47,000 hours L70 at 105C (IESNA LM-80-08 Standard)

IP Rating:  IP43  (IP65 by special order)

Warranty: 3 years

Approvals:

  • UL Listed
  • CE Certified



UL listed

CE certified



RoscoLED VariWhite Control Box Specifications:

Input Voltage: 90VAC ~ 264VAC via Neutrik Powercon connector

Output Voltage:  24VDC via three, 3-pin connectors

Rated Power: 400W

DMX: 5-Pin XLR In – RJ45 In/Out

Operating Temp:  32° to 122° F (0° to +50° C)

IP Rating: IP20

Dimensions:  8.25" × 8.25" × 2.82" (210 mm × 210 mm × 72 mm)

Weight:  9.5 lb (4.3 kg)

Certifications:  ETL/cETL (UL8750, CSA 22.2 #250)
ETL certified

CE certified



Product Numbers:
293220100020   RoscoLED® Tape VariWhite: 3000K-6000K
293220100021   RoscoLED® Tape VariWhite Ultra: 1800K-6500K
